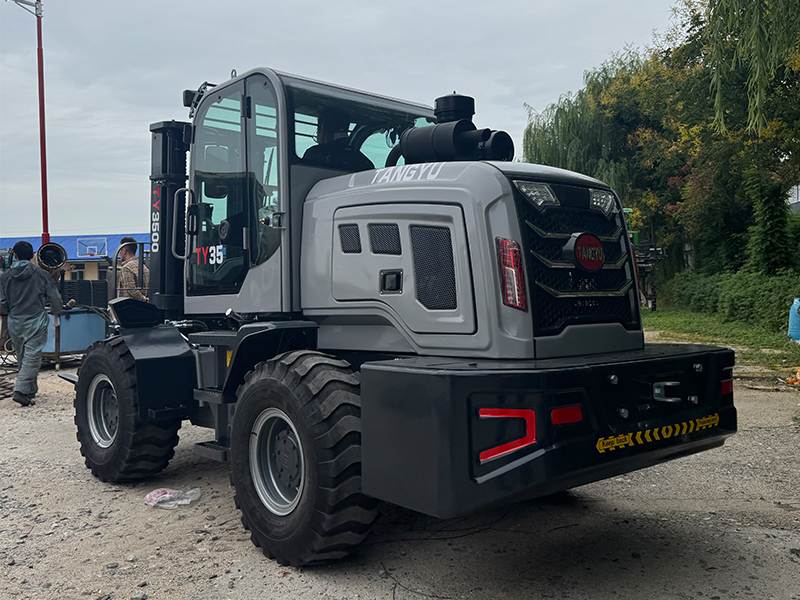

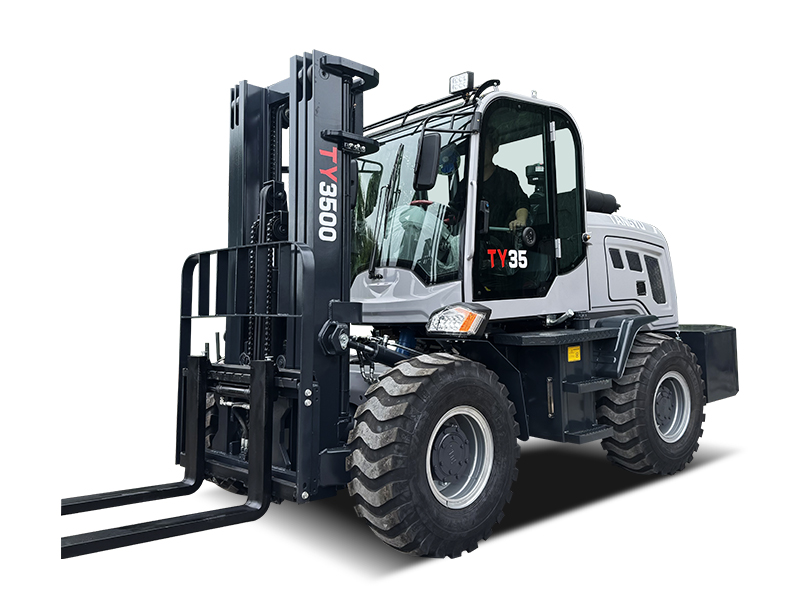

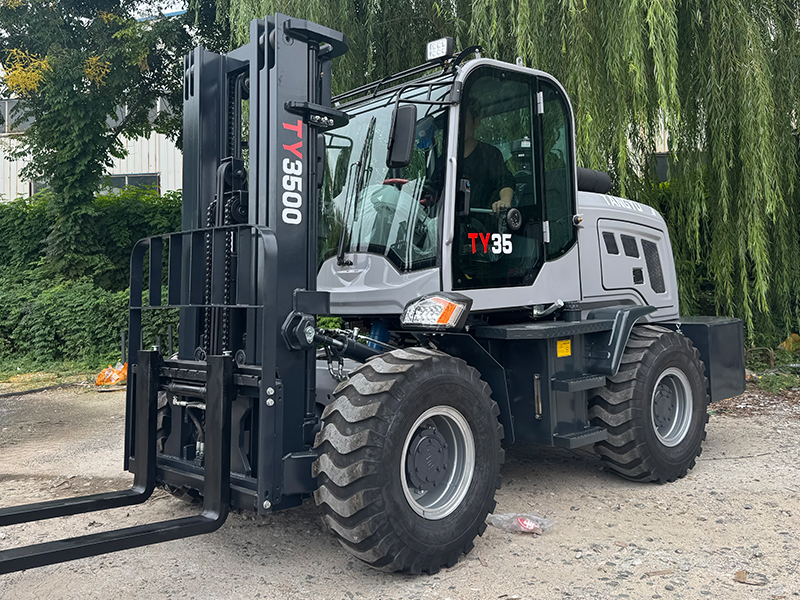

Qingdao Tangyu 3.5T front articulated four-wheel drive off-road forklift parameters | |
Rated Load(kg) | 3.5 tons |
Max.unloading Height(mm) | Customizable multi-level door frame（3000-6000） |
Owerall Weight(kg) | 4380 |
Dimensions(mm) | 3800×1800×2350mm |
Max.Grade Ability | ≤35° |
Drive mode | Full-time four-wheel drive |
Front Wheel tires | 23.5/70-16 |
Rear Wheel tires | 23.5/70-16 |
Portal-frame Bottom(mm) | 240mm |
Wheelbase center ground ciearance(mm) | 280mm |
Wheelbase(mm) | 1990mm |
Min.Turning Radius(mm) | 3500mm |
Engine Model | Weifang/Yunnei/Quanchai 490 National II/493 National IV |
Engine power(kw) | 36.8-77.2kw |
Battery voltage/capacity | 24/60（V/Ah） |
Mast tilt angle (front/rear) | 6°/12° |
How many units can be loaded in a container | 3units |
