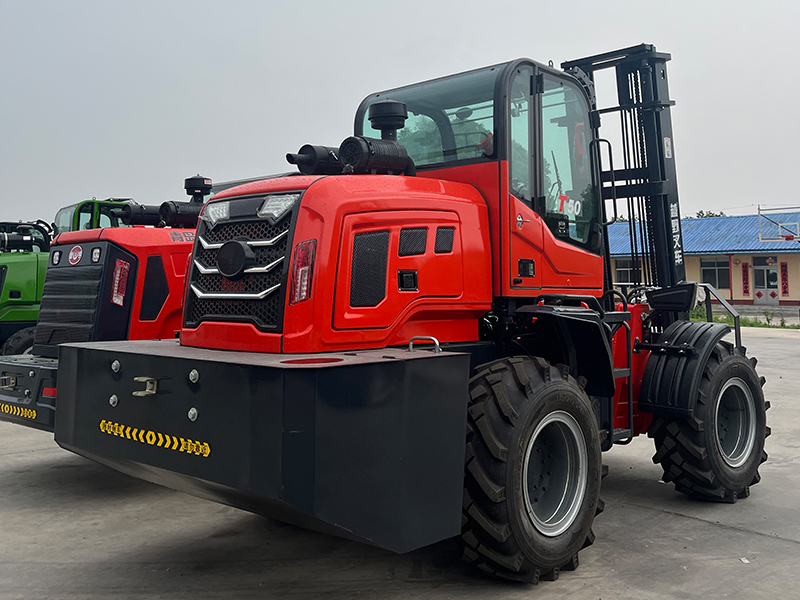

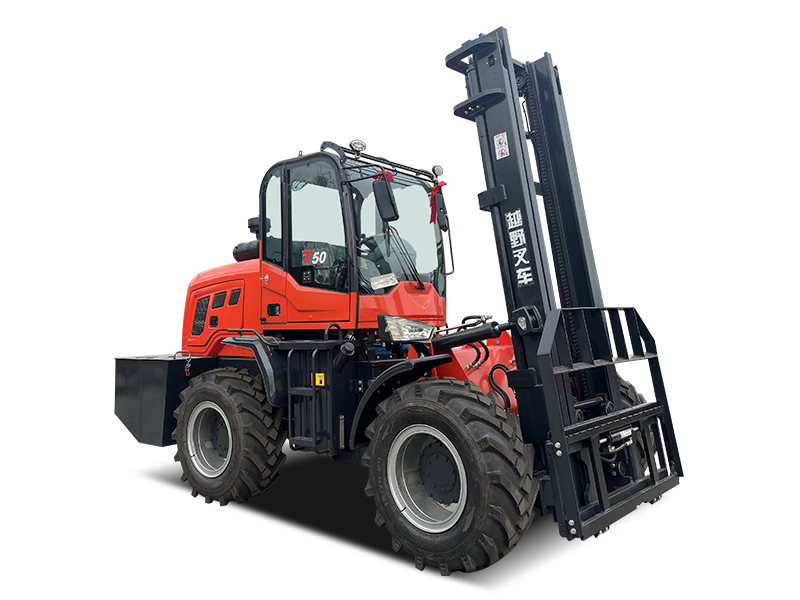

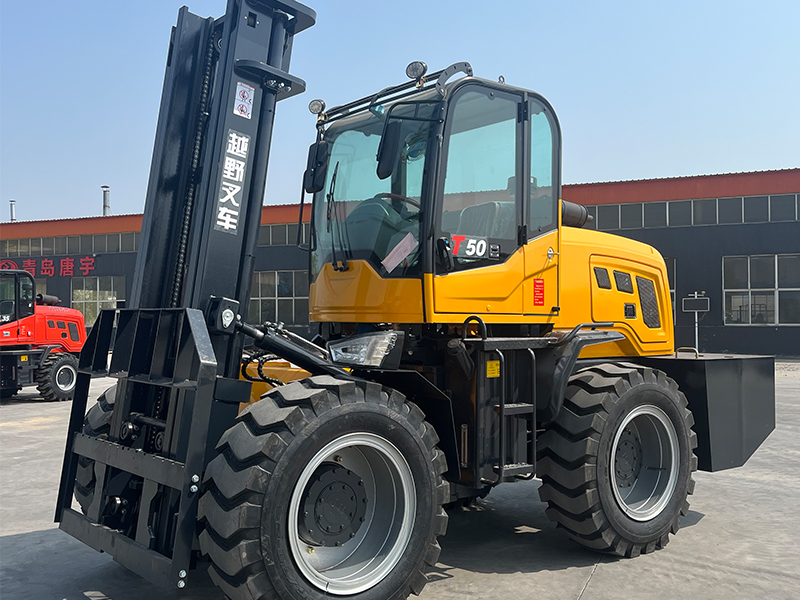

Qingdao Tangyu 5T front steering four-wheel drive off-road forklift parameters | |
Rated Load(kg) | 5000 |
Max.unloading Height(mm) | Customizable multi-level door frame（3000-6000） |
Owerall Weight(kg) | 6200 |
Dimensions(mm) | 4600×1950×2750mm |
Max.Grade Ability | ≤35° |
Drive mode | Full-time four-wheel drive |
Front Wheel tires | 16/70-20 |
Rear Wheel tires | 16/70-20 |
Portal-frame Bottom(mm) | 280mm |
Wheelbase center ground ciearance(mm) | 350mm |
Wheelbase(mm) | 2350mm |
Min.Turning Radius(mm) | 3500mm |
Engine Model | 4102pressurization |
Engine power(kw) | 76kw |
Battery voltage/capacity | 24/80（V/Ah） |
Mast tilt angle (front/rear) | 6°/12° |
How many units can be loaded in a container | 2 units |
