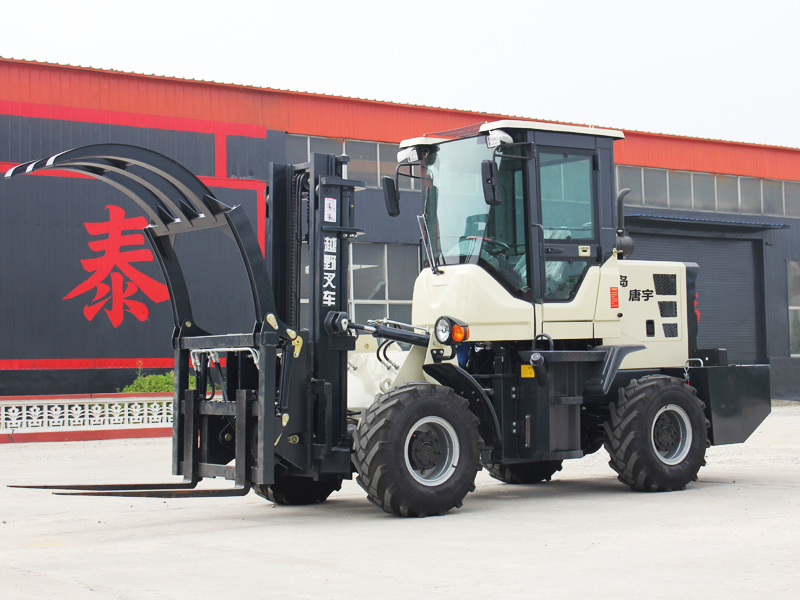

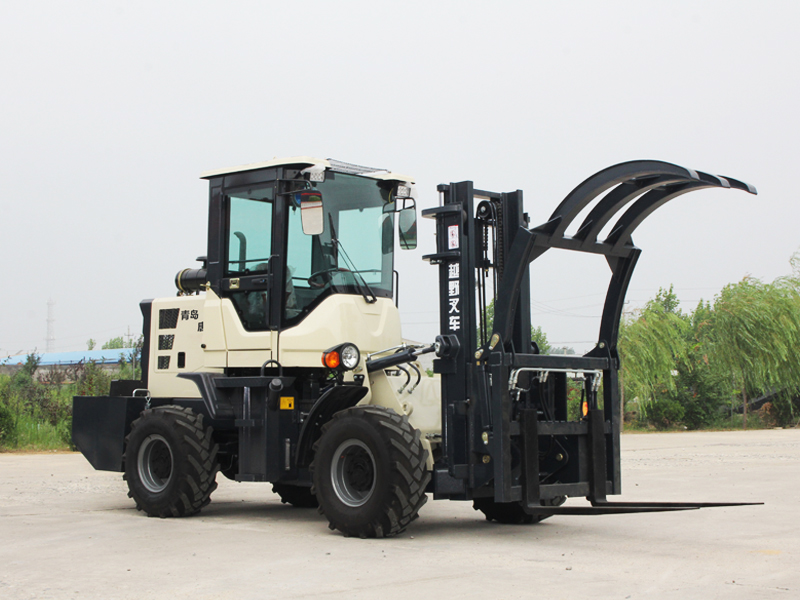

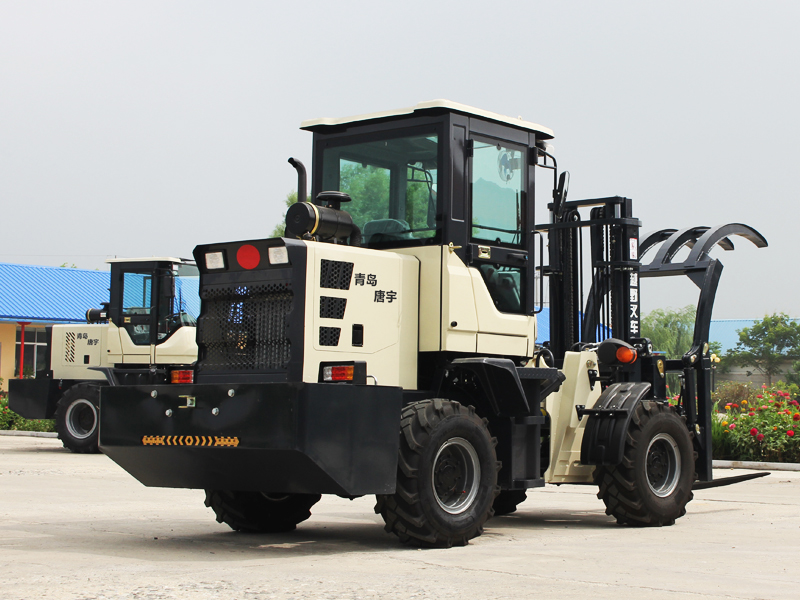

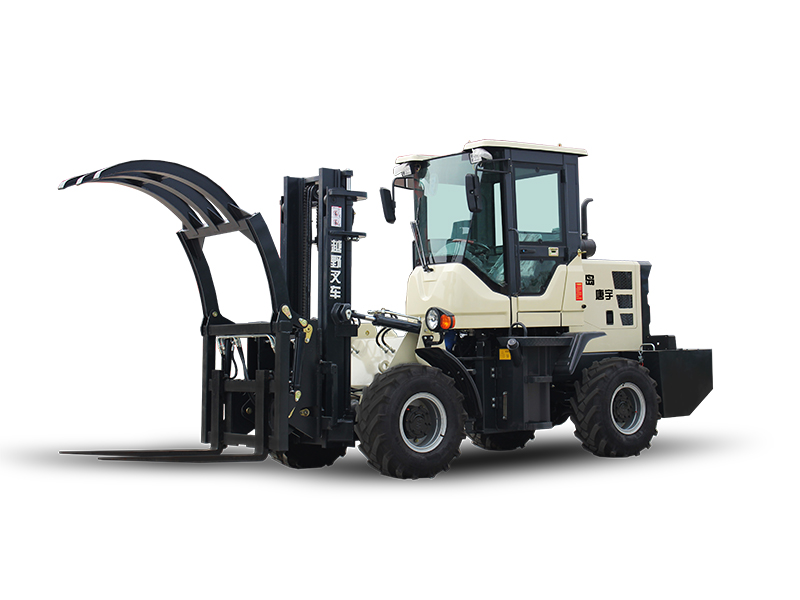

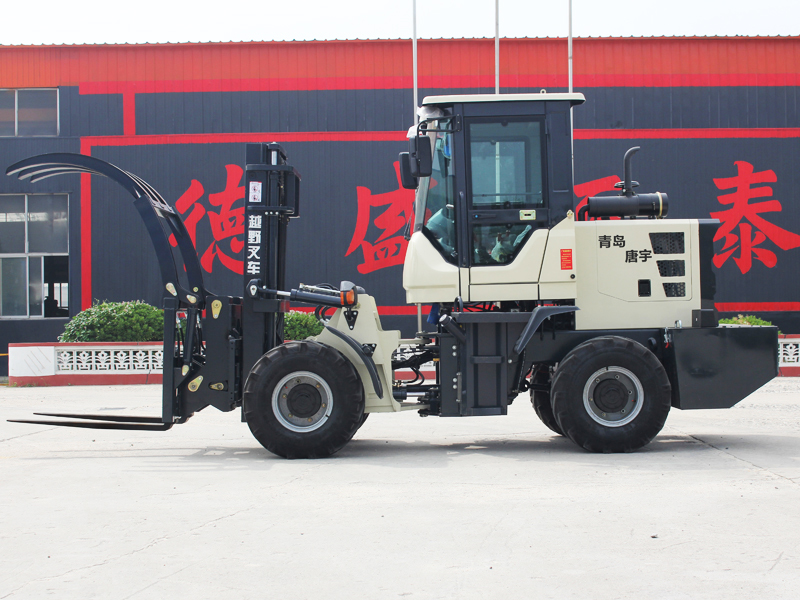

3.0T off-road forklift

Cross-country forklift is a kind of engineering vehicle that can safely and efficiently carry out material loading, unloading, stacking and handling work on slopes and uneven ground; like ordinary forklifts, it can be equipped with forks or replace more kinds of attachments to improve its work efficient. With a full-time four-wheel drive, it greatly increases the power of the forklift, so that the forklift can safely and efficiently carry out material loading, unloading, stacking and handling operations on sand and rugged ground. It has good off-road performance, passing performance and Greater traction. Cross-country forklifts are mainly used for field projects such as urban construction sites, pipeline laying, park development, mountain forest areas, and the loading and unloading of containers in terminal cargo yards.

3.0T four-wheel drive off-road forklift parameters

Rated Load(kg)

3000

Max.unloading Height(mm)

3000-6000

Owerall Weight(kg)

4150

Dimensions(mm)

3750×1800×2350mm

Max.Grade Ability

≤35°

Drive mode

Four-wheel drive

Front Wheel tires

20.5/70-16

Rear Wheel tires

20.5/70-16

Portal-frame Bottom(mm)

240mm

Wheelbase center ground ciearance(mm)

280mm

Wheelbase(mm)

1990mm

Min.Turning Radius(mm)

3500mm

Engine Model

Weifang/Yunnei/Quanchai490

Engine power(kw)

36.8kw

Battery voltage/capacity

24/60(V/Ah)

Mast tilt angle (front/rear)

6°/12°

How many units can be loaded in a container

3
